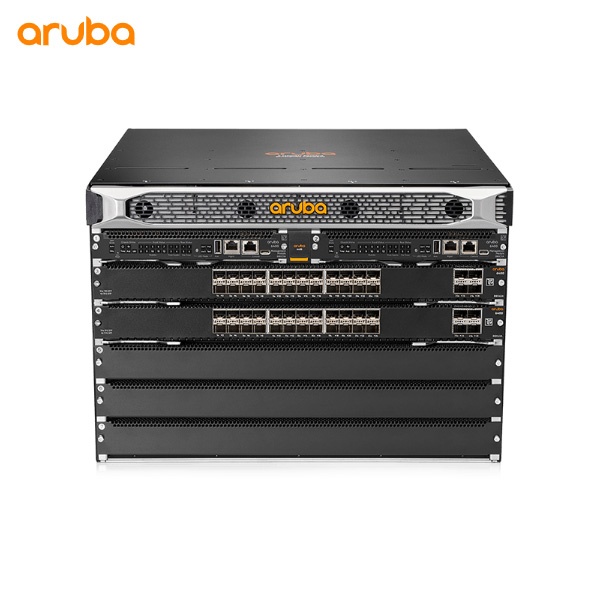

Aruba CX 6405 48SFP+ 8SFP56 (R0X30A)

Aruba CX 6405 48SFP+ 8SFP56 Switch bundle (R0X30A)

• 1x 6405 Chassis Switch (R0X24A)
• 1x Management Module (R0X31A)
• 2x Fan Trays (R0X32A)
• 2x R0X43A Line Card for 48x 1G/10G SFP+ ports and 8x 1/10/25/50G SFP ports. 50GbE capability is for use with 50G DACs for both interconnect and Aruba VSX. 50GbE transceiver capability enabled by future software release
• 3 open module slots
• Power supply units ordered separately
• Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″)
• Weight: 34.0 kg (75 lbs)

Performance:

• System Switching Capacity: up to 28 Tbps
• System Throughput Capacity: up to 11.4 Bpps

Management Ports:

• 1x USB-C Console Port
• 1x OOBM port
• 1x USB Type A Host port
• 1x Bluetooth dongle for use with Aruba CX Mobile App

POE Power:

• Up to 146 ports of 60W IEEE 802.3bt High Power PoE

Mounting:

• Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately.

Modules:

• Aruba 6400 Management Module (R0X31A)
• Aruba 6400 48p 1GbE CLS4 PoE Mod (R0X38B)
• Aruba 6400 48p 1GbE CLS4 PoE 4SFP56 Mod (R0X39B)
• Aruba 6400 48p 1GbE CLS6 PoE 4SFP56 Mod (R0X40B)
• Aruba 6400 48p Smart Rate CLS6 PoE 4SFP56 Mod (R0X41A)
• Aruba 6400 24p 10GT 4SFP56 Mod (R0X42A)
• Aruba 6400 24p SFP+ 4SFP56 Mod (R0X43A)
• Aruba 6400 48p 10G/25G SFP28 Mod (R0X44A)
• Aruba 6400 12p 40G/100G QSFP28 Mod (R0X45A)
• Aruba 6400 12p 40G/100G QSFP28 Mod (R0X45A)
• Aruba 6400 48p 10G/25G SFP28 v2 Mod (R0X44C)
• Aruba 6400 12p 40G/100G QSFP28 v2 Mod (R0X45C)

Power Supplies:

• Aruba 6400 1800W PS w/C16 Inlet Accessory (R0X35A)
• Aruba 6400 3000W PS w/C20 Inlet Accessory (R0X36A)

Fan Tray:

• Aruba 6400 Fan Tray (R0X32A)

Mounting Kit:

• Aruba 6400 4-post Rack Mount Kit (R0X37A)

Environmental:

• Operating temperature:
  • 32°F to 113°F (0°C to 45°C), up to 5,000 feet
  • 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet
  • 1°C de-rating per 1,000 feet above 5,000 feet
• Operating Relative Humidity: 15% to 95% relative humidity at 113°F (45°C), non-condensing
• Non-Operating: -40°F to 158°F (-40°C to 70°C)
• Non-Operating Storage relative humidity: 15% to 95% @ 149°F (65°C) noncondensing
• Max. Operating Altitude: 10,000 feet (3km)
• Max Non-operating Altitude: 10,000 feet (3 km)
• Primary airflow: Front-to-back

Electrical Characteristics:

• Frequency range: 50-60 Hz
• 80plus.org certification: Platinum rated for both R0X35A and R0X36A PSUs
• AC Voltage: R0X35A and R0X36A PSUs: 110-127 / 200-240VAC
• Current: R0X35A PSU: 12A @ 110-127VAC, 10A @ 200-240VAC; R0X36A PSU: 16A @ 110-240VAC

Safety:

• 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
• EN62368-1:2014
• IEC 60950-1:2005 Ed.2; AM 1:2009+A2:2013
• IEC 62368-1 Ed. 2
• IEC 60825:2007 (Applies to products with lasers)
• UL 60950-1
• CSA 22.2 No 60950-1
• UL 62368-1 Ed. 2

Emissions:

• VCCI Class A
• EN 55022 Class A
• CISPR 22 Class A
• IEC/EN 61000-3-2
• IEC/EN 61000-3-3
• ICES-003 Class A
• AS/NZS CISPR 22 Class A
• FCC (CFR 47, Part 15) Class A
• GB9254
• EN55032:2012 Class A
• CISPR32:2012 Class A

Immunity:

• Generic: CISPR 24 / CISPR 35
• EN: EN 55024:2010 +A1:2001 +A2:2003; ETSI EN 300 386 V1.3.3
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4
• Surge IEC 61000-4-5
• Conducted: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and interruptions: IEC 61000-4-11
• Harmonics: IEC/EN 61000-3-2
• Flicker: IEC/EN 61000-3-3

Additional Specifications:

For complete specifications Aruba CX 6405 48SFP+ 8SFP56 (R0X30A), please see the data sheet (PDF)
