Key Features:

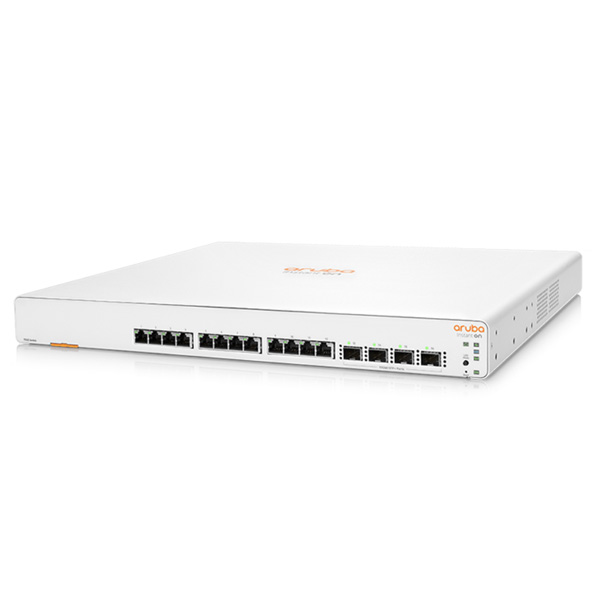

- Aruba Instant On 1960 12XGT (JL805A)
- 12 x 10G RJ45 Ethernet Ports
- 4 x 10G SFP+ Ports
- 320 Gb/s Switching Capacity
- 238 Mpps Forwarding Rate
- Rack-Mountable
- 2 GHz ARM Cortex-A9 Single-Core CPU
Aruba Instant On 1960 datasheet
Specification:
Product Differentiator (long) | Advanced 10G, smart-managed stackable switch designed for business networks and workgroups needing ultra-high performance. Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking. Using either local web GUI, Instant On mobile app or cloud-based web portal, you can quickly set up, monitor and manage the switches from anywhere at anytime. |
Power Consumption Description | Maximum: 100-127V: 130W 200-220V: 160W Idle: 100-127V: 60W 200-220V: 80W |
Input Voltage | 100 – 240 VAC |
External I/O Ports | 12 RJ-45 100/1000/10GBASE-T ports, 4 SFP+ 10GbE ports |
Switching Capacity | 320 Gbps |
Stacking Capabilities | 4H height |
Throughput | 238 Mpps |
Memory and Processor | Single Core ARMv7 Cortex-A9 @2Ghz |
Management Features | Aruba Instant On Cloud; Web browser; SNMP Manager |
Warranty Standard Statement | Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration. |
Weight (imperial) | 9.6 lb |
Weight (metric) | 4.3 kg |
Product Dimensions (imperial) | 13.80 x 17.42 x 1.73 in |
Product Dimensions (metric) | 35.05 x 44.25 x 4.4 cm |
Operating Temperature | 0-40°C, 0-10,000 ft |
